Association Design

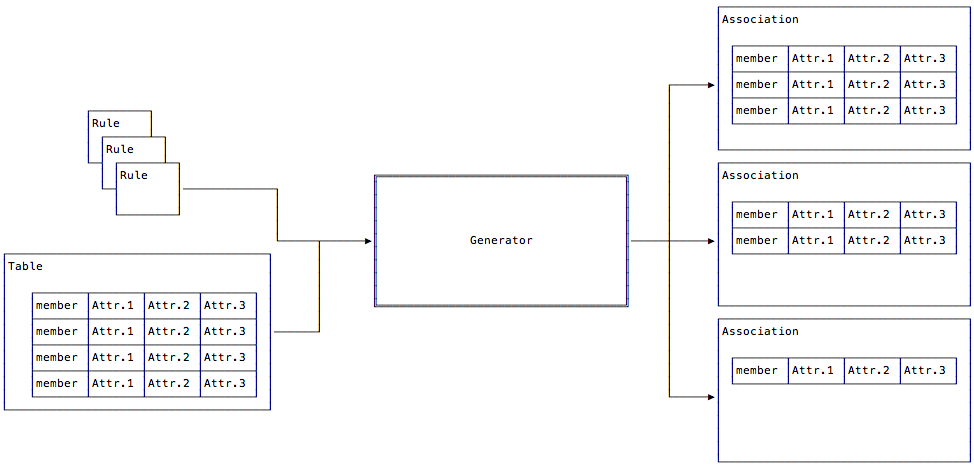

Figure 1: Association Generator Overview

As introduced in the overview, the figure above shows all the major players used in generating associations. Since this section will be describing the code design, the figure below is the overview but using the class names involved.

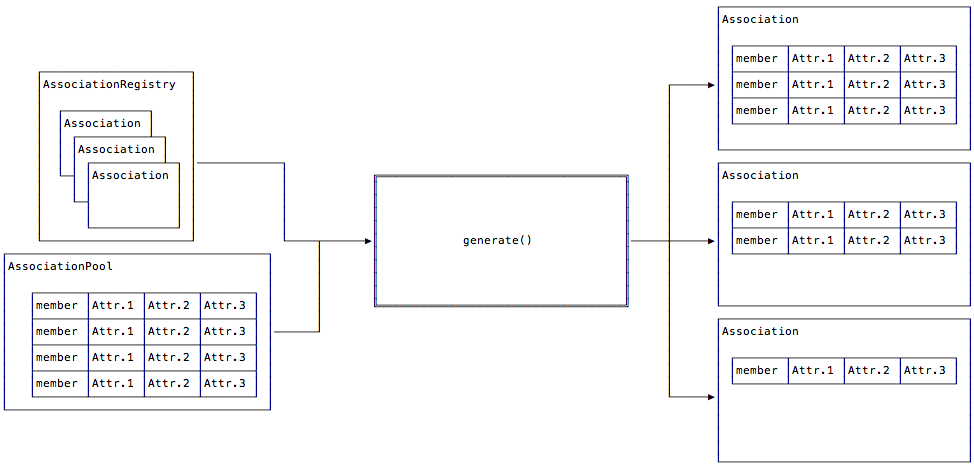

Figure 2: Association Class Relationship overview
